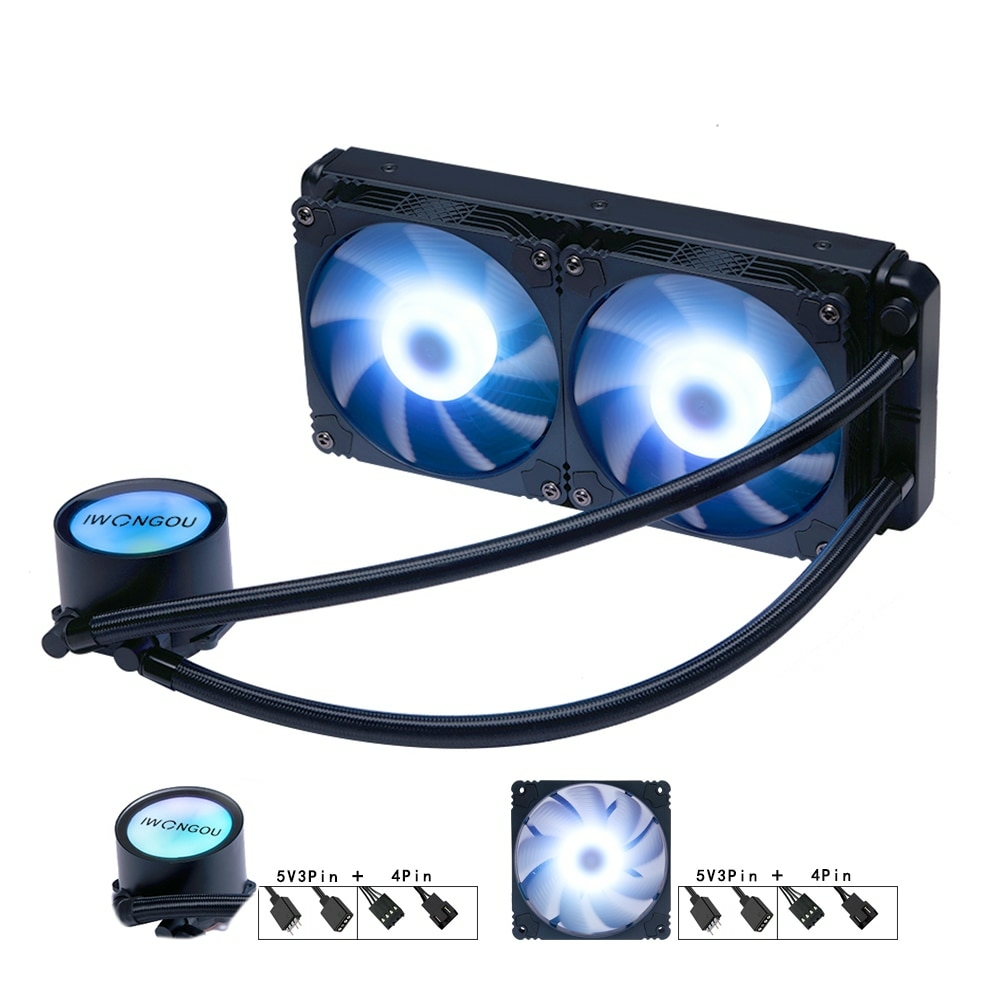

IWONGOU Water Cooler Lga1700 360mm White Black 4pin Argb Cooler Fan 120mm Rgb X99 Processor Cooler Liquid Cooling for Intel AMD
Note:Due to the numerous product styles, please carefully check the interface and parameters of the product before purchase.
The difference between ARGB and RGB Versions:
ARGB Fan coms with 5V-3PIN interface.Supports motherboard synchronization. But your motherboard must have a 5V-3PIN interface.
Socket Supported |
Intel |
LGA 1700/1200/2011/2066/1366/1151/1150/1155/1156 |
AMD |
AM5/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 |
|
Water pipeline |
120 water-cooled size |
320±10mm |
240 water-cooled size |
400±10mm |
|
360 water-cooled size |
410±10mm |
|
Cold row |
120 water-cooled size |
153*120*27mm |
240 water-cooled size |
274*120*27mm |
|
360 water-cooled size |
397*120*27mm |
|
Material |
Aluminium |
|
Fan |
Size |
120*120*25mm |
Voltage |
5VDC/12VDC |
|
wind presssure |
2.5mm H20(Max) |
|
Rotating speed |
680-1800RPM±5% |
|
Bearing |
Hydraulic bearing |
|
Air volume |
62CFM(Max) |
|
MTTF |
≥40000Hours |
|
Noise value |
27dBA |
|
Fan connector |
4PIN PWM |
|
Pump |
Rated current |
0.15A |
Rated Power |
2.1W |
|
PUMP Interface |
4PIN RGB |
|
+5V/3pin ARGB |
Intelligent temperature control and noise reduction operation: 120mm colorful fan can operate between 680rpm and 1800rpm to realize high-speed heat dissipation.
The maximum air volume of 62 CFM and the air pressure of 2.5mmH20 combined with the water block and cooling fins , can more effectively dissipate heat.
The three-way drive motor is equipped with an enclosed supercharger impeller,which is powerful and low-noise.
Split water chamber design to reduce noise and improve heat dissipation efficiency.
Colorful water cooling head:The dazzled light effect is seamless, the beauty of light and shadow, and the beauty is higher.
1. RGB light panel, A.C.C adaptive light effect.
2. 8 Extreme motor Large torque small motor.
3. Shaft alloy bearing is durable.
4. Low-inertia design improves the cold liquid flow rate impeller.
5. Pure copper on the copper bottom absorbs core heat quickly.
Reject leakage:Industrial-grade interface sealing process, tensile resistance, bending, good tightness, avoiding leakage and evaporation.
Finely polished copper bottom:Large-area copper base, strong heat absorption at zero distance, accelerating heat conduction, micro-channel technology to improve heat exchange rate and speed up CPU heat dissipation.
1.Black woven mesh
2.Outer rubber mesh
3.White fiber mesh
4.Internal rubber layer
The polymer braided protective tube has low evapotranspiration rate to prevent the natural volatilization of the coolant under long-term high temperature use.
Power dense aluminum water drain:High density fin, large heat dissipation area, enhanced heat dissipation efficiency, low resistance, high efficiency cold drain design.
Low resistance water channel:Onthe premise ofnotchanging the appearance size of the cold radiator. the width of the water channel isincreasedandthe flow resistance is reduced. The increased fin height increases the heat dissipation area of the cold radiator by about 25%.
Package Contents:
Intel fastener * 1
AMD fastener * 2
Fan screw (120 water-cooled * 4, 240 water-cooled * 8, 360 water-cooled * 8)
Lock fastener screw * 4
High screw * 4
Intel high screw * 4 (black)
AMD high screw * 4 (silver white)
Backboard * 1
Lock box screws * 4
Needle cylinder heat conduction paste * 1
1 to 2 fan adapter * 1 (240 water cooling only)
1 to 3 fan adapter * 1 (360 water cooling only)
Easy to install,support most platforms:
Optimize the fastener, simplify the installation process, and quickly disassemble even if the platform is replaced.
